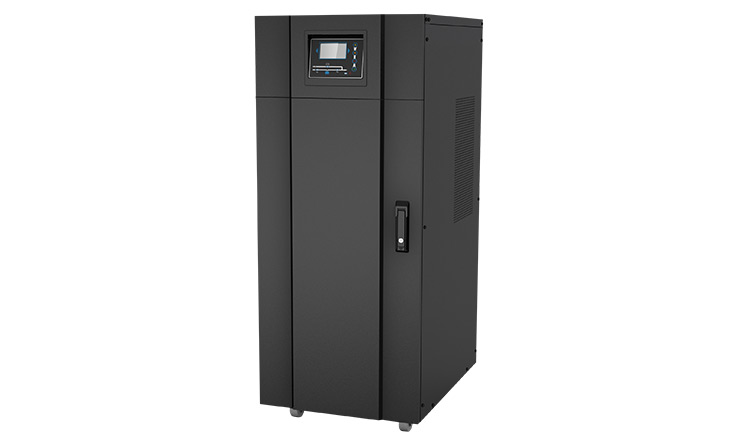

Hybrid Inverter - ESS-B Series 10K/20K

Hybrid Inverter

ESS-B Series 10K/20K

Three-phase Off-grid inverter

Contact

SEND ENQUIRY

  X

Title: Mr. Ms.

Submit

Features

Support utility/generator input, strong environmental adaptability

MPPT Control algorithm, high efficient

LCD+LED design, user-friendly interface

Controller, inverter, isolator integrated design, easy to install and use

Perfect protection function-battery management and temperature compensation function

Modular design of the controller, plug and play, easy to expand

Pure sine wave output, power frequency transformer isolation design, safe and reliable

Certificates

TUV, SAA, CE, CQC, AS/NZS 4777.2:2015, VDE 0126-1-1, EN62109-1/2, G98, G99,CNCA/CTS0004-2009A, CNCA/CTS0006-2010, EN61000-6-1/2/3/4, EN62109-1/2, RD1663, C10-11

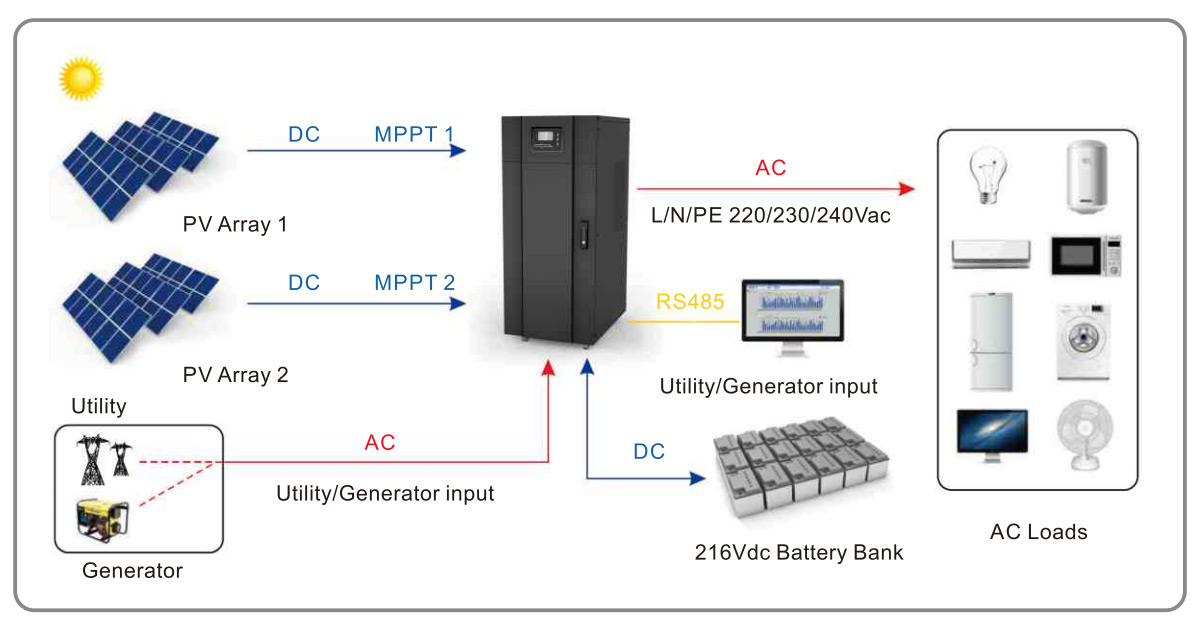

System Diagram

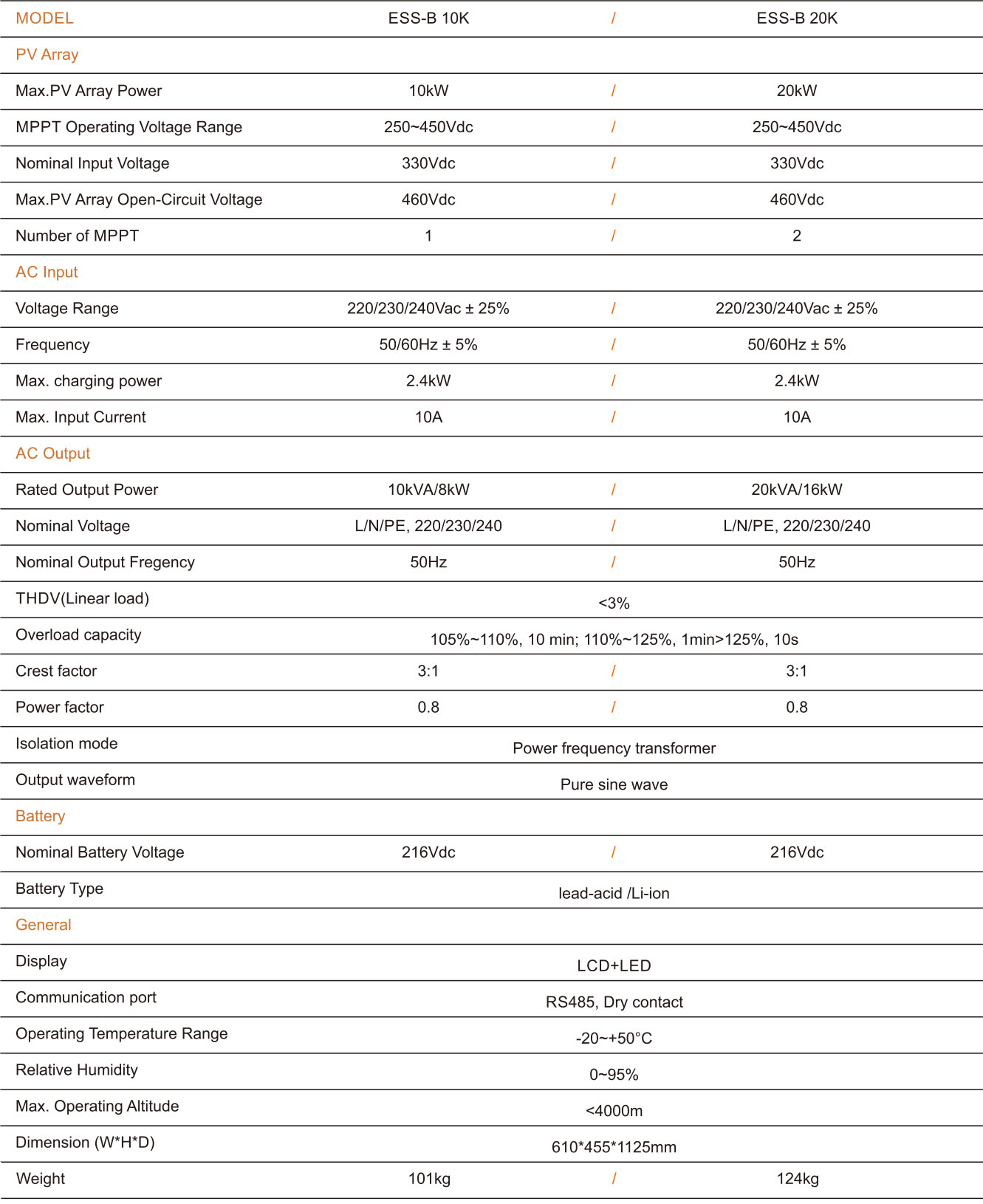

Technical data
