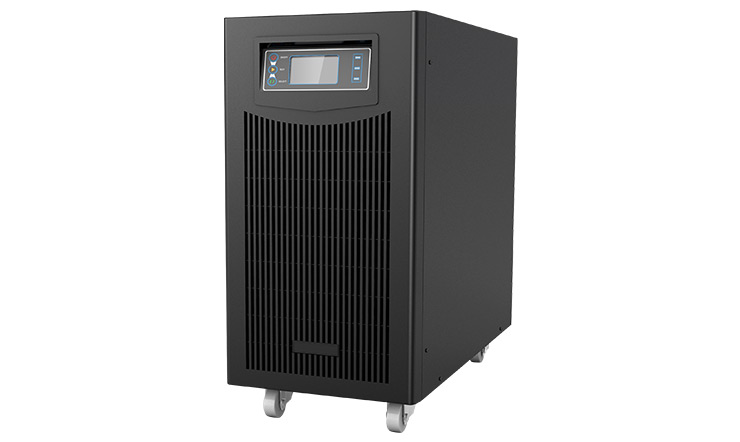

Hybrid Inverter - XPI 3K/5K-LV

Hybrid Inverter

XPI 3K/5K-LV

Hybrid Solar inverter with power transformer isolation and 120Vac Output

Contact

SEND ENQUIRY

  X

Title: Mr. Ms.

Submit

Features

Pure Sine Wave Output, Power Factor 1.0

Wider PV input voltage range: 130V~300Vdc

Programmable supply priority for PV, Grid or Battery

User-adjustable charging/discharging current or acquire from BMS by RS-485, suits for different types of lead-acid or lithium batteries

User-Friendly LCD Pannel +LED Display

Capable to Remote monitor inverter With wifi or 4G

Certificates

TUV, SAA, CE, CQC, AS/NZS 4777.2:2015, VDE 0126-1-1, EN62109-1/2, G98, G99,CNCA/CTS0004-2009A, CNCA/CTS0006-2010, EN61000-6-1/2/3/4, EN62109-1/2, RD1663, C10-11

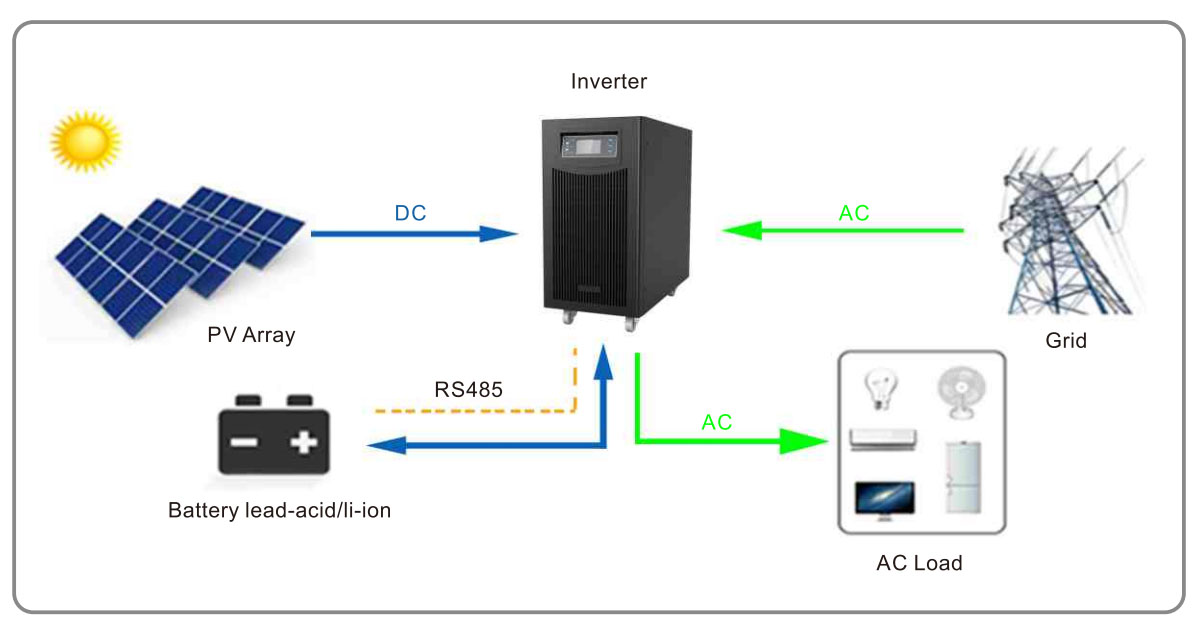

System Diagram

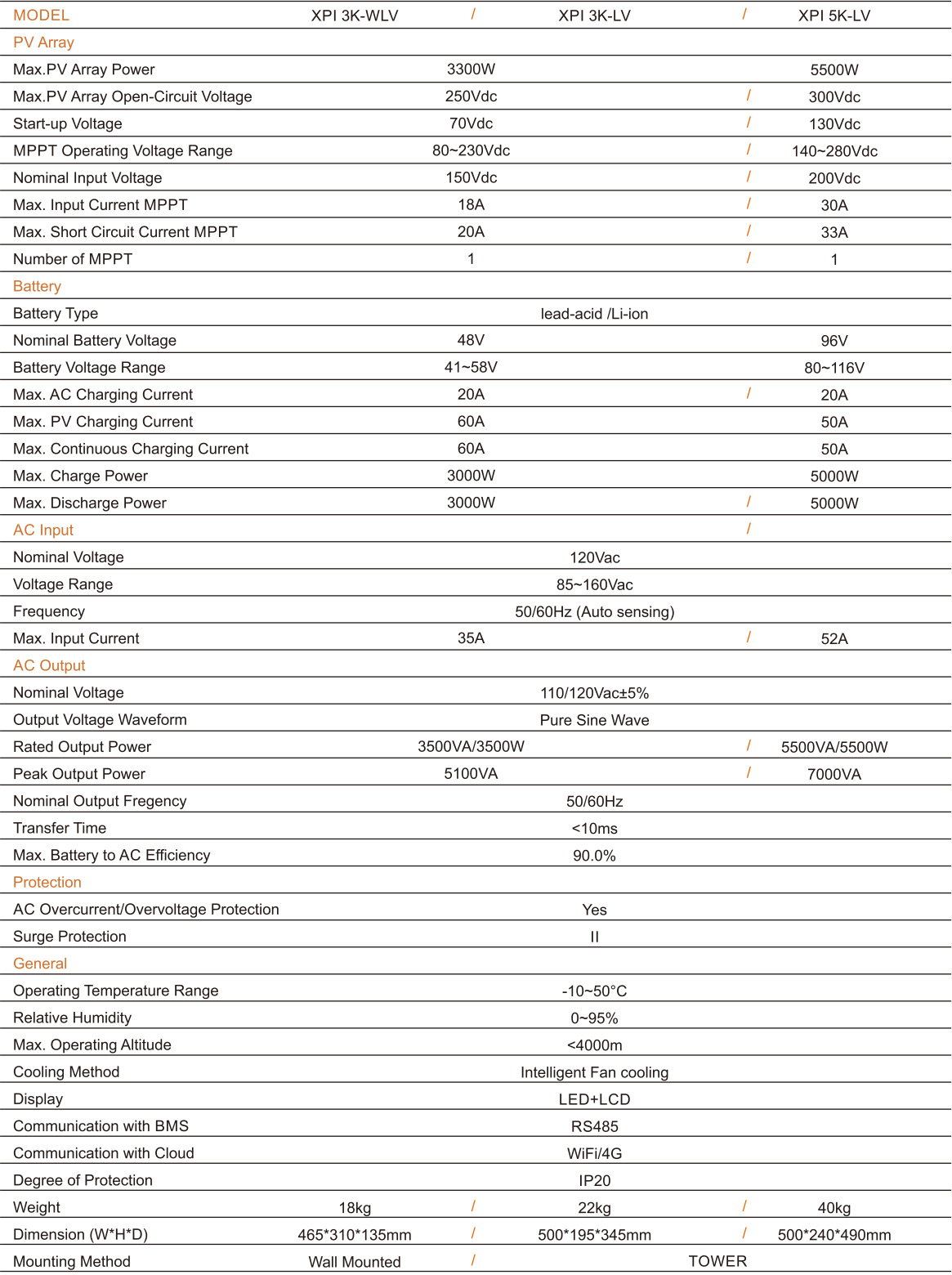

Technical data
