JFY Released iXCEED+ 3kW/5kW Hybrid Inverter
With the development of the PV industry, FIT（feed in tariff） has been falling down in many countries. In the near future, the FIT probably will be canceled in some areas, which is going to be a kind of trend. Considering this situation, how to increase the benefits of PV system and cut down the electricity costs will be a hot topic. It’s reported that PV + energy storage" will become an effective solution for the situation.
For the solar energy storage solution, it aims to increasing the self-consumption rate, reducing raising costs for getting electricity from grid. Meanwhile， it able to improve your energy independence.

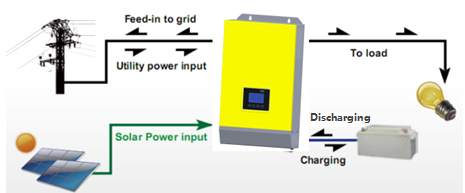

System Diagram
JFY has been focusing on electronic industry for 15 years. With its strong R&D ability, JFY recently launched a new series product---iXCEED+ hybrid inverter. This product has two models 3kW/5kW, adopting advanced MPPT control algorithm to ensure get more energy from sunshine for the system. Also, the LLC resonant buck charging circuit can improve the system conversion efficient greatly. System adopts high frequency isolation electronic design to ensure the system safety and stability. Thanks to its built-in current sensor module, users can adjust its output power from 0-100% according to different scenarios.
It’s very convenient for customer to manage and monitor the PV power plant running status in real time via WIFI or GPRS.

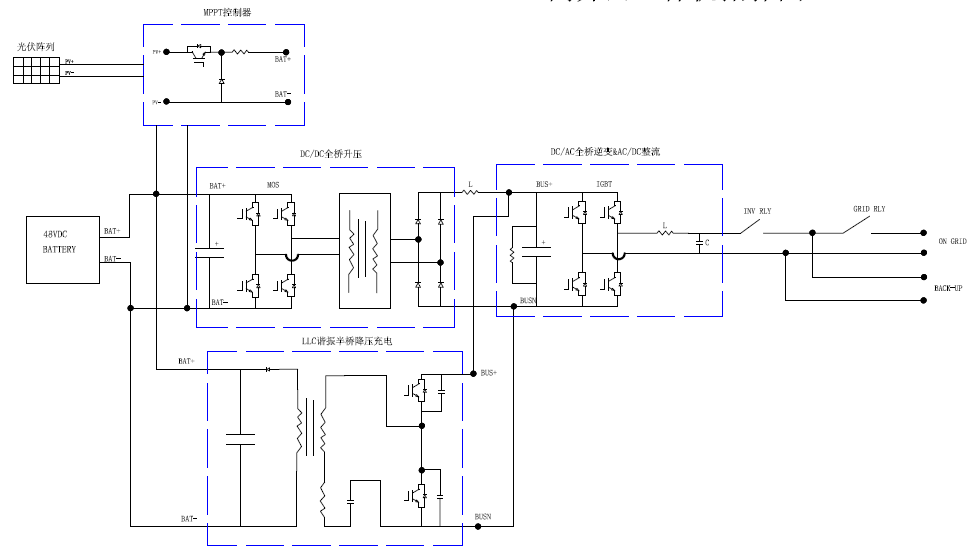

System topology diagram
JFY iXCEED+ series hybrid inverter has three main working modes. One is economic mode, this is the default setting mode, the system power will be used for the load firstly, and the excess energy will be stored in the battery pack, if still has redundant energy, it will be feed into grid. If PV is not enough, the battery will discharge to support the load together. Further if the power is still not enough, it will import power from grid. The second work mode is backup mode. In this mode, the battery always is full (SOC is settable) to ensure the system stability. The solar energy will be used to charge the battery first, when battery is full, then supply power to load, if still has energy left, it will connect to grid. The third mode is off-grid mode, when grid outage or no grid, the system will working as a pure off-grid system. And the working modes are programmable, users can set the working mode by mobile phone through the APP.
Product Appearance
Solar energy storage system is becoming more and more popular all over the world. JFY has launched the iXCEED+ series energy storage product according to the marketing trend. JFY focuses on the power electronics industry over 15 years and will continue to innovate in the future to bring better products and services for their customers worldwide.
