Features
Power frequency transformer isolation design,safe and reliable
LCD+LEDscreen design,rich content display
MPPT control algorithm,high efficiency
110Vac/60Hz pure sine wave output,superior load capacity
Qverload, low voltage, surge, short circuit, overcharge, over discharge,
over temperature, ect. protection

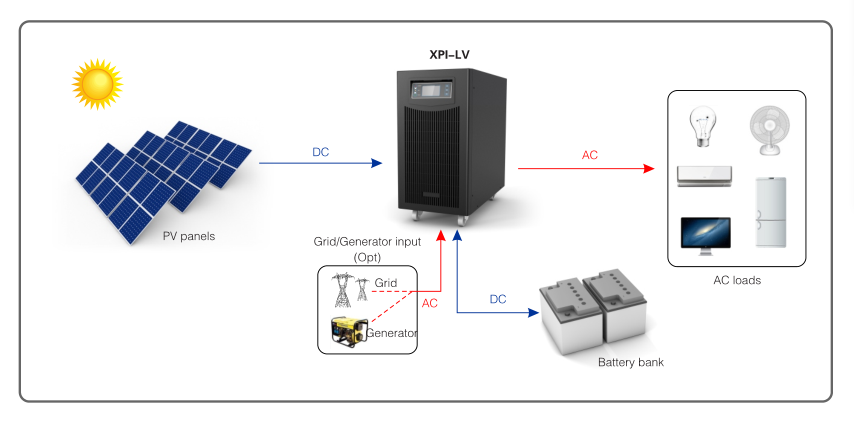

Description
Technical data
|
Technical Data |
1kVA |
3kVA |
5kVA |
|
DC Side |
|
|
|
|
Rated input power (W) |
1000 |
2880 |
5760 |
|
Battery voltage (Vdc) |
24 |
48 |
96 |
|
Number of MPPT |
1 |
1 |
1 |
|
MPPT voltage range (Vdc) |
30~90 |
70~150 |
150~300 |
|
Operating voltage (Vdc) |
60 |
100 |
210 |
|
Max. input current (A) |
50 |
50 |
50 |
|
Max. charge current (A) |
50 |
50 |
50 |
|
Float charge voltage (Vdc) |
26.7 |
53.5 |
107 |
|
Even charge voltage (Vdc) |
28.2 |
56.4 |
112.8 |
|
AC Input |
|
|
|
|
Input voltage range (Vac) |
100~120 |
100~120 |
100~120 |
|
Input frequency range (Hz) |
55~65 |
55~65 |
55~65 |
|
Max. charge current (A) |
10/20 |
10/20 |
10/20 |
|
Inverter |
|
|
|
|
Rated output power (VA/W) |
1000/800 |
3000/2400 |
5000/4000 |
|
Output voltage (Vac) |
110±3% |
110±3% |
110±3% |
|
Output frequency (Hz) |
60±1% |
60±1% |
60±1% |
|
THDV |
＜5% （Linear load） |
＜5% （Linear load） |
＜5% （Linear load） |
|
Efficiency |
＞85% |
＞85% |
＞85% |
|
Overload capability |
105%~120%, 30S； |
105%~120%, 30S； |
105%~120%, 30S； |
|
|
120%~150%, 10S； |
120%~150%, 10S； |
120%~150%, 10S； |
|
|
＞150%， 5S； |
＞150%， 5S； |
＞150%， 5S； |
|
Crest factor |
3:1 |
3:1 |
3:1 |
|
Output waveform |
Pure sine wave |
Pure sine wave |
Pure sine wave |
|
Power factor |
0.8 |
0.8 |
0.8 |
|
General Data |
|
|
|
|
Display |
LCD+LED |
LCD+LED |
LCD+LED |
|
Cooling concept |
Forced air cooling |
Forced air cooling |
Forced air cooling |
|
Communication port |
RS232 |
RS232 |
RS232 |
|
Noise [dB(A)] |
＜55 |
＜55 |
＜55 |
|
Operating temperature range (℃) |
-5~45 (＞45 derating) |
-5~45 (＞45 derating) |
-5~45 (＞45 derating) |
|
Storage temperature range (℃) |
-20~55 |
-20~55 |
-20~55 |
|
Humidity |
0~95% (Non-condensing) |
0~95% (Non-condensing) |
0~95% (Non-condensing) |
|
Altitude (m) |
＜6000 （＞3000 derating） |
＜6000 （＞3000 derating） |
＜6000 （＞3000 derating） |
|
Dimension (D*W*H mm) |
420*145*215 |
500*195*345 |
500*240*490 |
|
Weight (kg) |
10 |
22 |
40 |

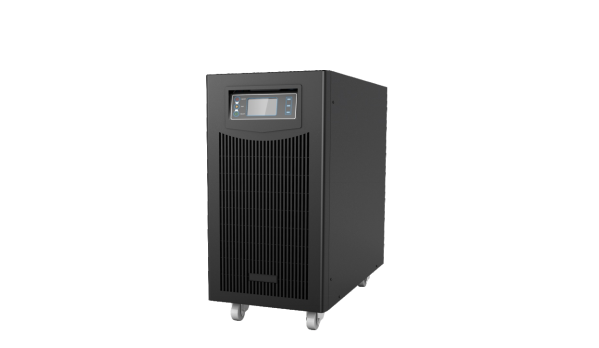

.png "Off Grid Inverter - XPI-LV Series 1.0KVA-5.0KVA")

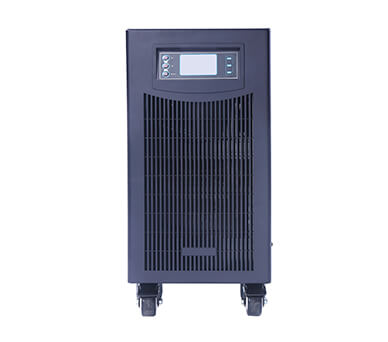

-lp.png "Off Grid Inverter - XPI-LV Series 1.0KVA-5.0KVA")
