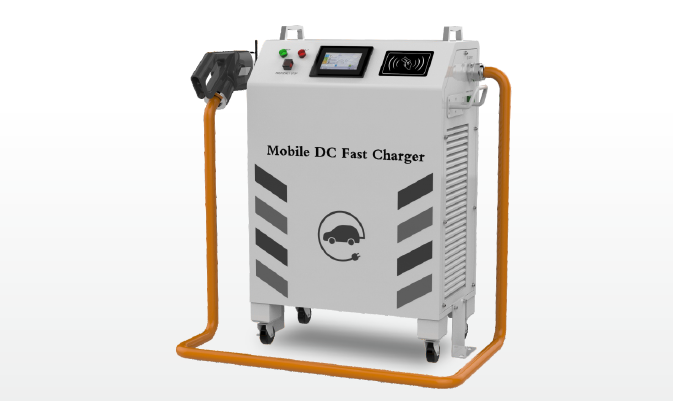

CSP series movable type intelligent DC quick charger support CCS Combo 2 , support for the OCPP 1.6.
CSP 15/30K500-E movable type intelligent DC quick charger is resistant to vibration and has
complete protection functions,suitable for bus charging stations, parking lots, auto repair shops,
car manufacturers and other places where customers can quickly respond and test supplementary energy.
Applications
EV Infrastructure and operators
EV fleet (private and public)
EV dealers and service providers
| Model | CSP 15K500-E | CSP 30K500-E |
| Nominal Input | ||
| Power connection | 3P+N+PE | |
| Voltage & Frequency | 400VAC±10%；45~65Hz | |
| Efficiency | ≧94% | |
| Power factor | ≧0.98 | |
| DC Output | ||
| Voltage | 100-500V | |
| Max.Current | 37.5A | 75A |
| Max. Power | 15kw | 30kw |
| General Specifications | ||
| Shell material | Hot-dip galvanized steel sheet | |
| Charging mode | IEC 61851-1 Charging model-4 | |
| DC plugs | IEC62196-3(CCS Combo 2) | |
| Display | 4.3”TFT Color touch screen | |
| RFID system | Mifare (Classic, DesFire EV1) or others on request | |
| Communication | GPRS /LAN/Wi-Fi | |
| Communication Protocols | OCPP (optional: others) | |
| Place of installation | Indoor | |
| Altitude | 6000m（Derating over 3000m ） | |
| Protection grade | IP32 | |
| Operating Temperature | -20-60℃（Derating over 50℃ ） | |
| Storage Temperature | -40-70℃ | |
| Humidity | 5%~95% without condensation | |
| Sound noise | <55 dB in all directions | |
| Length of charging gun cable | 5m(optional) | |
| Dimensions(W*D*H) | 500*300*765mm | 500*300*765mm |
| Weight | 50kg | 68kg |
