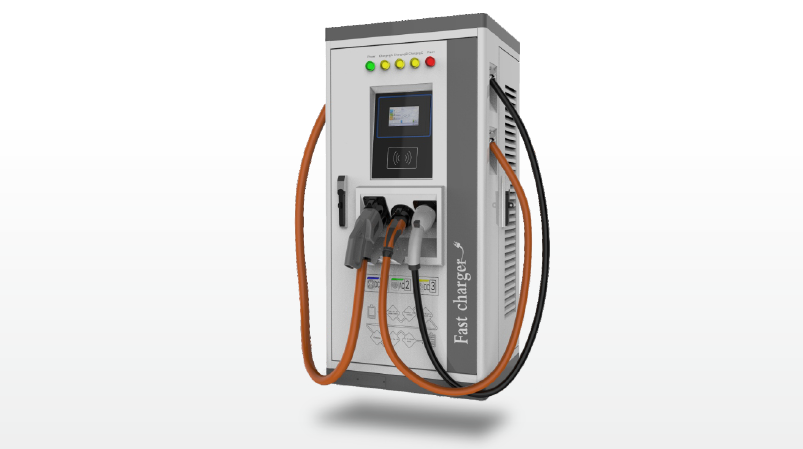

.png "EV Charger - CSI 60K750-EJA")
-lp.png "EV Charger - CSI 60K750-EJA")
Applications
Highways and national roads;
Fuel-stations (City and strategic locations);
EV Infrastructure and operators;
EV fleet (private and public);
EV dealers and service providers.
| Model | CSI 60K500-EJA | CSI 60K750-EJA |
| Nominal Input | ||
| Power connection | 3P+N+PE | |
| Voltage & Frequency | 400VAC±10%;45~65Hz | |
| Efficiency | ≧94% | |
| Power factor | ≧0.99 | |
| DC Output | ||
| Voltage（optional） | 100-500V |
200-750V (up to 500V for CHAdeMO) |
| Current | 150A（CCS Combo2）/150A (CHAdeMO) | |
| Max. Power | 60kw | |
| AC output | ||
| voltage | 230V or 400V | |
| Current | from 16A up to 63A | |
| Nominal Power | from 3.7kw up to 43kw | |
| General Specifications | ||
| Shell material | Hot-dip galvanized steel sheet | |
| Charging mode | Multi-standard DC outputs(model-4),AC(model-3) | |
| Communication with EV |
JEVS G104(CHAdeMO) , IEC61851-23 PLC(CCS Combo -2), IEC61851-1(AC) |
|
| DC plugs | JEVS G104(CHAdeMO) /IEC62196-3(CCS Combo 2) | |
| AC plugs | IEC62196 AC Type 2 | |
|
Human Machine Interface Display |
7’’ TFT Color touch screen |
|
|
RFID system |
Mifare (Classic, DesFire EV1) or others on request |
|
| Communication | GPRS/LAN/Wi-Fi | |
| Communication Protocols | OCPP (optional: others) | |
| Place of installation | Indoor/Outdoor | |
| Altitude | 6000m（Derating over 3000m ） | |
| Protection degree | IP54 | |
| Operating Temperature | -20-60℃（Derating over 50℃ ） | |
| Storage Temperature | -40-70℃ | |
| Humidity | 5%~95% without condensation | |
| Sound noise | <55 dB in all directions | |
| Length of charging gun cable | 5m(optional) | |
| Dimensions(W*D*H) | 650*500*1350mm | |
| Weight | 205kg | |
