CSW series wall-mounted type intelligent DC quick charger support CCS COMBO2
support for the OCPP 1.6.

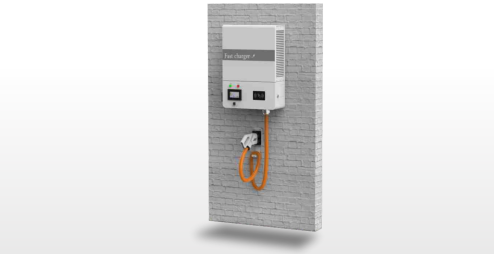

.png "EV Charger - CSW 15/30K500-E")
-lp.png "EV Charger - CSW 15/30K500-E")
• Perfect charging protection such as input over/under voltage, connection abnormality, emergency stop
• Protection against lightning protection, leakage, short circuit, over current, over temperature, reverse battery connection, etc.
• Wall-mounted installation, cover an area of an area small
• Modular design, flexible configuration and easy maintenance
• High degree of protection and wide voltage output
• Support swiping card/scan QR code to pay
• Support CCS standard quick charging
Applications
| Model | CSW 15K500-E | CSW 30K500-E |
| Nominal Input | ||
| Power connection | 3P+N+PE | |
| Voltage & Frequency | 400VAC±10%；45~65Hz | |
| Efficiency | ≧94% | |
| Power factor | ≧0.99 | |
| DC Output | ||
| Voltage | 100-500V | |
| Max.Current | 40A | 40A |
| Max. Power | 15kw | 30kw |
| General Specifications | ||
| Shell material | Hot-dip galvanized steel sheet | |
| Charging mode | IEC 61851-1 Charging model-4 | |
| DC plugs | IEC62196-3(CCS Combo 2) | |
| Display | 4.3”TFT Color touch screen | |
| RFID system | Mifare (Classic, DesFire EV1) or others on request | |
| Communication | 3G /LAN/Wi-Fi | |
| Communication Protocols | OCPP (optional: others) | |
| Place of installation | Indoor | |
| Altitude | 6000m（Derating over 3000m ） | |
| Protection grade | IP30 | |
| Operating Temperature | -20-60℃（Derating over 50℃ ） | |
| Storage Temperature | -40-70℃ | |
| Humidity | 5%~95% without condensation | |
| Sound noise | <55 dB in all directions | |
| Length of charging gun cable | 5m(optional) | |
| Dimensions(W*D*H) | 530*170*752mm | 530*200*752mm |
| Weight | 43kg | 62kg |
